20 Slimline Panoramic Door
Hidden Linear Track Design
2 Gaskets Fused into 1, No Water/Dust Buildup
20mm Ultra-Narrow Reinforced Hook Rail
Doubles as Sliding Handle, Unobstructed View
4mm Integrated Reinforced Handle
Reinforced Handle
| Category | Technical Parameters | Standard |
|---|---|---|
| Aluminum Mode | 6005-T5 | / |
| Windload Resistance | Class 8 | / |
| Watertightness | Class 6 | / |
| Air Permea bility | Class 6 | / |
| Thermal Insulation | K≤1.6W/(㎡·K) | / |
| Sound Insulation | 35–40dB | / |
|
Panoramic Views and a Greater Sense of Openness The slim 30 mm visible frame width accommodates large glass panels, reducing visual obstruction and creating brighter, more open interior spaces. |
|
Space-Saving Lift-and-Slide Operation The door panels slide horizontally without occupying indoor or outdoor space. The lift-and-slide mechanism provides convenient operation for large-format doors and enhanced sealing when closed. |
|

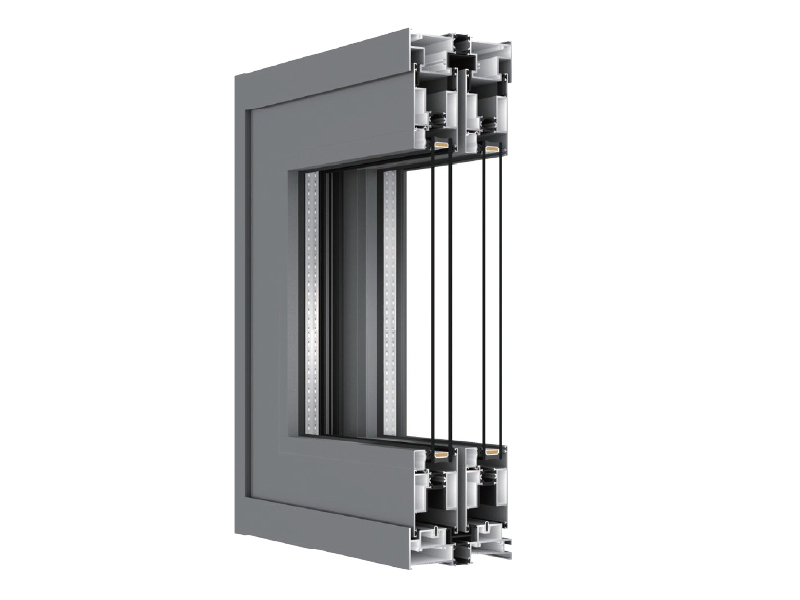

Wide-Frame, Heavy-Duty Structure A 150 mm-deep outer frame, 63 mm-deep sash and 2.2 mm-thick aluminum profiles provide reliable structural support for large sliding door systems. |
|
Excellent Wind Resistance and Weather Sealing The system achieves Class 8 wind load resistance, Class 6 watertightness and Class 6 airtightness, providing reliable protection against strong winds and rain. |
| High Thermal Insulation and Energy Efficiency The KS150 uses a 24 mm thermal break and accommodates glazing up to 47 mm thick. The recommended 6Low-E+20Ar+6 insulated glass with a warm-edge spacer achieves a thermal transmittance of K ≤ 1.6 W/(m²·K). |
| Enhanced Acoustic Comfort Sound insulation performance of 35–40 dB helps reduce outdoor traffic and everyday environmental noise, creating a quieter indoor environment. |
150000㎡ Production Base
Smart Manufacturing 5.0
With ERP Information Management System
Modern Automated Intelligent Production Lines
1000000㎡+
Worry-free Delivery
A: The KS150 features a 150 mm-deep outer frame, a 63 mm-deep sash and 2.2 mm-thick aluminum profiles, making it suitable for large openings and expansive glass panels. Its lift-and-slide operation saves indoor and outdoor space while providing panoramic views and convenient operation.
A: The system achieves Class 8 wind load resistance, Class 6 watertightness and Class 6 airtightness, providing reliable wind resistance, weather protection and sealing performance for balconies, terraces and building façades.
A: The KS150 uses a 24 mm thermal break and is recommended with 6Low-E+20Ar+6 argon-filled insulated glass and a warm-edge spacer. It achieves a thermal transmittance of K ≤ 1.6 W/(m²·K) and sound insulation of 35–40 dB.
