20 Slimline Panoramic Door
Hidden Linear Track Design
2 Gaskets Fused into 1, No Water/Dust Buildup
20mm Ultra-Narrow Reinforced Hook Rail
Doubles as Sliding Handle, Unobstructed View
4mm Integrated Reinforced Handle
Reinforced Handle
| Category | Technical Parameters | Standard |
|---|---|---|
| Aluminum Mode | 6005-T5 | / |
| Windload Resistance | Class 8 | / |
| Watertightness | Class 6 | / |
| Air Permea bility | Class 7 | / |
| Thermal Insulation | K≤1.5W/(㎡·K) | / |
| Sound Insulation | 35–45dB | / |
| Robust three-chamber high-thermal-insulation window structure delivering superior thermal performance. |
| Insulation material is standard-equipped inside thermal chambers for meeting higher insulation requirements. |
| High-quality EPDM sealing strips ensure long-term durability and reliable performance of the doors and windows. |
| It features versatile opening options and can accommodate various casement configurations including inward-opening and outward-opening styles. |
| Standard European C-groove design, with a variety of hardware configurations to meet the needs of different users. |
| Multiple optional drainage solutions, including concealed drainage and floor-drainage designs, ensuring excellent water-tightness of the doors and windows. |
150000㎡ Production Base
Smart Manufacturing 5.0
With ERP Information Management System
Modern Automated Intelligent Production Lines
1000000㎡+
Worry-free Delivery

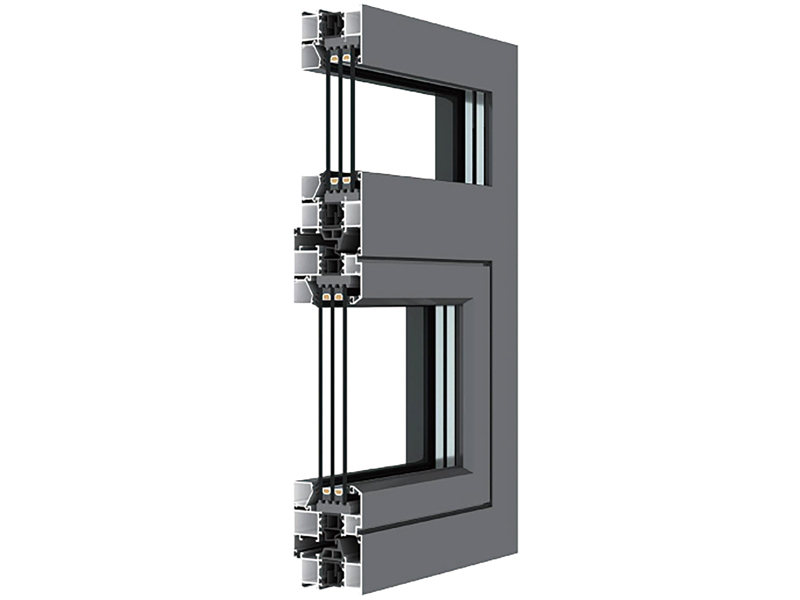

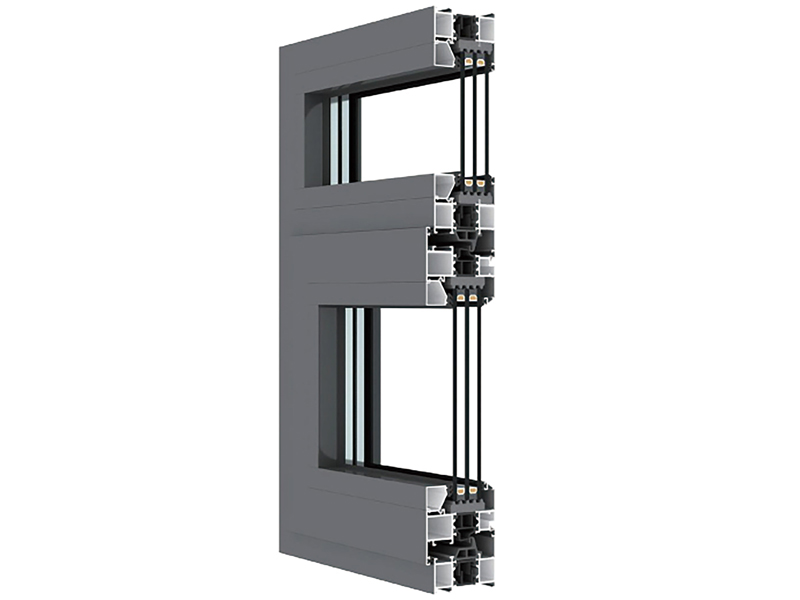

A: The KC71 Series features a 29 mm thermal break, a three-chamber insulated structure and built-in insulation materials. It accommodates 55 mm Low-E triple glazing with argon-filled cavities and warm-edge spacers, achieving a thermal transmittance of K ≤ 1.5 W/(m²·K).
A: It achieves Class 8 wind load resistance, Class 6 watertightness and Class 7 airtightness, with sound insulation of 35–45 dB. High-quality EPDM gaskets and multiple drainage solutions further enhance its performance in windy, rainy and noisy environments.
A:The KC71 Series uses 1.8 mm-thick aluminum profiles and a standard European C-groove design. It supports multiple hardware configurations, inward- and outward-opening options, as well as concealed and floor-drain-type drainage systems for different architectural and installation requirements.
