20 Slimline Panoramic Door
Hidden Linear Track Design
2 Gaskets Fused into 1, No Water/Dust Buildup
20mm Ultra-Narrow Reinforced Hook Rail
Doubles as Sliding Handle, Unobstructed View
4mm Integrated Reinforced Handle
Reinforced Handle
| Category | Technical Parameters | Standard |
|---|---|---|
| Aluminum Mode | 6005-T5 | / |
| Windload Resistance | Class 8 | / |
| Watertightness | Class 6 | / |
| Air Permea bility | Class 7 | / |
| Thermal Insulation | K≤1.6W/(㎡·K) | / |
| Sound Insulation | 35–45dB | / |
| Flush frame-and-sash design throughout, delivering a clean and elegant appearance. |
| Stable multi-chamber, high-insulation design, providing excellent overall performance. |
| Standard European double corner joint technology, ensuring high connection strength for doors and windows. |
| Standard concealed hardware, enhancing the overall sealing performance of the doors and windows. |
| High-quality EPDM sealing strips ensure long-term durability and reliable performance. |
| Multiple optional drainage solutions, including concealed drainage and floor-drainage designs, ensuring excellent water-tightness of the doors and windows. |
150000㎡ Production Base
Smart Manufacturing 5.0
With ERP Information Management System
Modern Automated Intelligent Production Lines
1000000㎡+
Worry-free Delivery

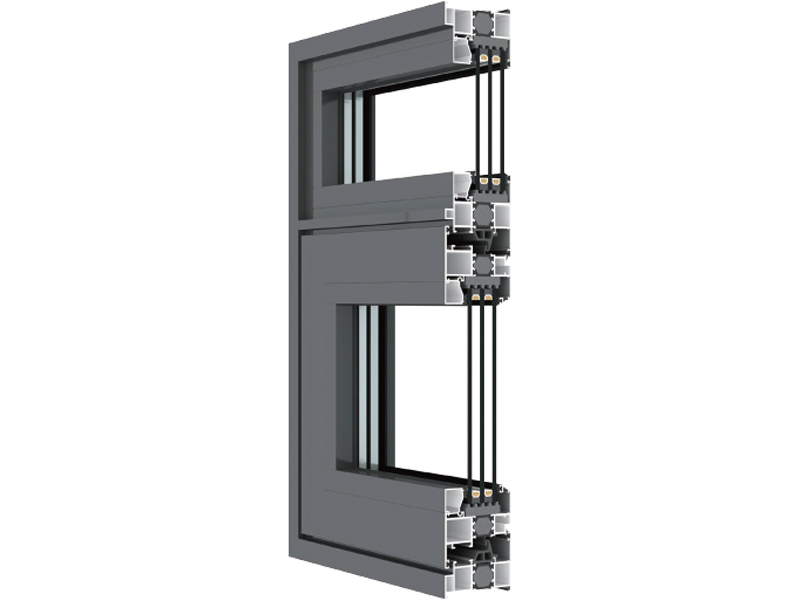

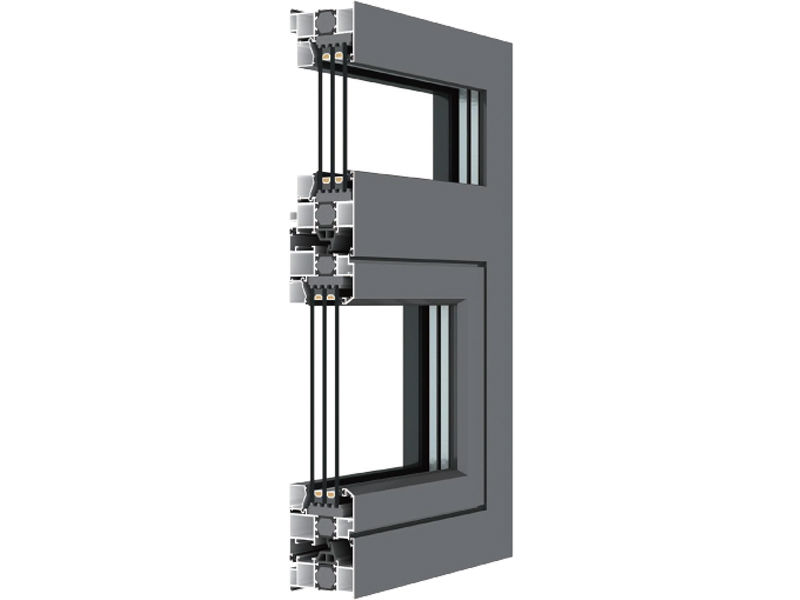

A: The KC75P features a flush frame-and-sash design, a slim visible frame width of only 22 mm and concealed hardware. This creates a clean, streamlined appearance while reducing visual obstruction and allowing more natural light into the interior.
A: The KC75P uses a 24 mm thermal break and a stable multi-chamber insulation structure. It accommodates glazing up to 50 mm thick and is recommended with Low-E triple glazing, two argon-filled cavities and warm-edge spacers, achieving a thermal transmittance of K ≤ 1.6 W/(m²·K).
A:The series uses 1.8 mm-thick aluminum profiles and European-style double corner-jointing technology. It achieves Class 8 wind load resistance, Class 6 watertightness and Class 7 airtightness. EPDM gaskets, concealed hardware and multiple drainage options further improve sealing, durability and sound insulation of 35–45 dB.
