20 Slimline Panoramic Door
Hidden Linear Track Design
2 Gaskets Fused into 1, No Water/Dust Buildup
20mm Ultra-Narrow Reinforced Hook Rail
Doubles as Sliding Handle, Unobstructed View
4mm Integrated Reinforced Handle
Reinforced Handle
| Category | Technical Parameters | Standard |
|---|---|---|
| Aluminum Mode | 6005-T5 | / |
| Windload Resistance | Class 6 | / |
| Watertightness | Class 6 | / |
| Air Permea bility | Class 4 | / |
| Thermal Insulation | K≤2.4W/(㎡·K) | / |
| Sound Insulation | 35–40dB | / |
|
Expansive Panoramic Views Designed for large glass panels, the sliding window provides expansive views, abundant natural light and a greater sense of openness. |
|
Space-Saving Sliding Operation The sashes move horizontally along the tracks without occupying indoor or outdoor space, making the system suitable for balconies, living rooms and large scenic windows. |
|

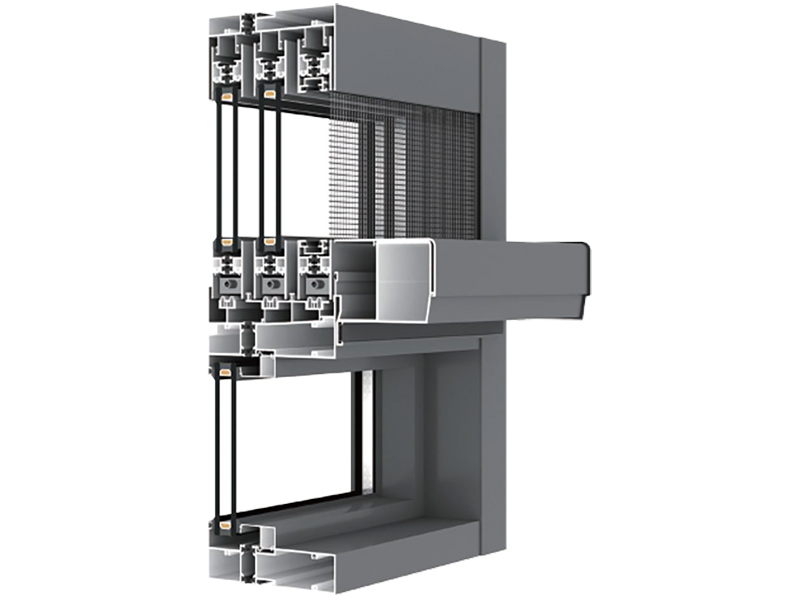

Wide-Frame Structure for Enhanced Stability The 140 mm-deep outer frame and 1.8 mm-thick aluminum profiles provide reliable structural |
|
Low-E Insulated Glass for Improved Energy Efficiency The system accommodates glass up to 30 mm thick. The recommended 5Low-E+20Ar+5 configuration with a warm-edge spacer, combined with a 14.8 mm thermal break, achieves a thermal transmittance of K ≤ 2.4 W/(m²·K). |
| Reliable Watertightness and Airtightness With Class 6 watertightness and Class 4 airtightness, the window provides reliable protection against everyday wind and rain while improving indoor comfort. |
| Enhanced Acoustic Comfort Sound insulation performance of 35–40 dB helps reduce outdoor traffic and everyday environmental noise. |
150000㎡ Production Base
Smart Manufacturing 5.0
With ERP Information Management System
Modern Automated Intelligent Production Lines
1000000㎡+
Worry-free Delivery
A: The KS140 accommodates large glass panels, providing expansive panoramic views and abundant natural light. Its sashes slide horizontally along the tracks without occupying indoor or outdoor space, making it suitable for balconies, living rooms and scenic window applications.
A: The system features a 140 mm-deep outer frame and 1.8 mm-thick aluminum profiles for reliable structural stability. It achieves Class 6 wind load resistance and Class 6 watertightness, providing dependable performance in everyday wind and rain.
A:The KS140 uses a 14.8 mm thermal break and is recommended with 5Low-E+20Ar+5 insulated glass and a warm-edge spacer. It achieves a thermal transmittance of K ≤ 2.4 W/(m²·K), Class 4 airtightness and sound insulation of 35–40 dB.
