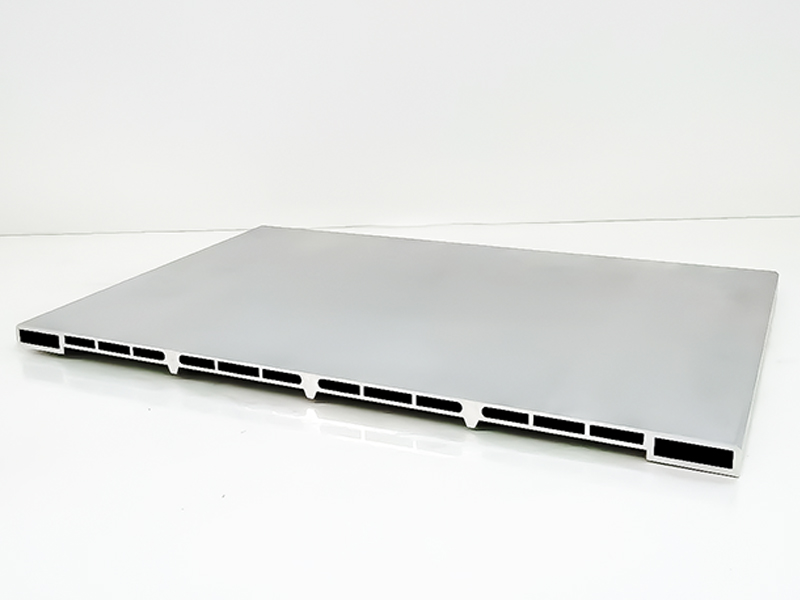

High Precision Leak Tested Hard Anodized Aluminum Runner Plate for Cooling

Name: High Precision Leak Tested Hard Anodized Aluminum Runner Plate for Cooling
Availability: InStock

1、The runner plate is machined from 6061 or 6082 T6 aluminum alloy with a hard anodized finish and 100% leak testing.

2、Internal flow channels are smooth and obstruction-free, with a surface roughness of ≤Ra0.8μm and a hole diameter tolerance of ±0.01mm, enabling highly efficient fluid flow.

3、A precision-flat sealing surface and a defect-free mating interface ensure zero leakage. Exceptional corrosion resistance, pressure tolerance, and temperature tolerance are provided, with a service life far exceeding that of conventional parts.

Brand :
NewEnergyVehicleParts
Name :
High Precision Leak Tested Hard Anodized Aluminum Runner Plate for Cooling
Material Grade :
6082/6061
Temper :
T6
Mechanical Properties :
tensile strengthRm≥290MPa yeild strength Rp0.2≥240MPa elongation延伸率：≥10%
manufacturing process :
Extrusion+CNC+CMT+Powder Coating

Inquiry Now

High Precision Leak Tested Hard Anodized Aluminum Runner Plate for Cooling

The runner plate is machined from 6061 or 6082 T6 aluminum alloy with a hard anodized finish and 100% leak testing.

Internal flow channels are smooth and obstruction-free, with a surface roughness of ≤Ra0.8μm and a hole diameter tolerance of ±0.01mm, enabling highly efficient fluid flow.

A precision-flat sealing surface and a defect-free mating interface ensure zero leakage. Exceptional corrosion resistance, pressure tolerance, and temperature tolerance are provided, with a service life far exceeding that of conventional parts.

High Precision Leak Tested Hard Anodized Aluminum Runner Plate for Cooling

Category	Technical Parameters	Standard
Product Name	High Precision Leak Tested Hard Anodized Aluminum Runner Plate for Cooling	sill beam/sill beam assembly
Material Grade	6082 Aluminum Alloy	High-Strength Grade
Temper	T6	Heat Treated
Tensile Strength	≥ 290 Mpa	Structural Stability
Yield Strength	≥ 240 Mpa	Load-bearing Capacity
Elongation	≥ 10%	Ductility & Toughness
Compatible Module	Customized Dimensions	Large-Format Modules
Manufacturing process	Extrusion+CNC+CMT+Powder Coating

Quality Control

Hardness Testing

HBW hardness testing (≥95) and micro-hardness measurement on hard anodized surface ensure wear and pressure resistance.

Leak Testing

100% automated air leak testing at specified pressure, with zero leakage acceptance criterion.

Sealing Surface Inspection

Visual and flatness checks ensure a defect-free mating surface for zero leakage.

Direct Factory Benefits

Capacity

Annual Production Capacity: 70,000 Tons

Customization

Support for Various Length and Cross-section Designs Based on Client Drawings

Packaging

Export-standard Protective Packaging to Prevent Deformation During Sea Freight

Frequently Asked Questions

Q1: s the quality of your products stable? Could there be dimensional variations between batches after mass production?

A: Very stable. Every batch is controlled under ISO/TS 16949, with 100% gauging inspection for critical holes and profiles. We have supplied over millions of sets with a customer complaint rate below 5 %.

Q2: How do you guarantee a 25-year lifespan in corrosive or coastal environments?

A: Normal lead time is 25~30 days. We reserve 20% flexible capacity for rush orders, with fastest delivery in 15 days upon prior agreement(Shipping time not including).

Q3: Do you have enough capacity? If we need 5,000 sets per month for six consecutive months, can you guarantee no supply interruption?

A:Our current monthly capacity is 50,000 sets. 5,000 sets/month is well within our capability, and we can sign an annual supply agreement to secure capacity.
