OEM Aluminum Energy Storage Container Supplier

Industrial Aluminum Battery Container Factory

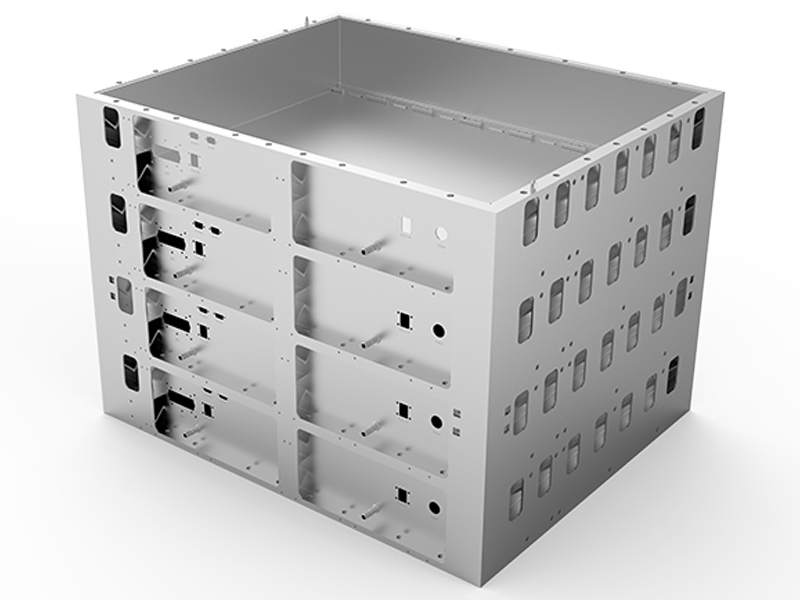

Multi Scenario High Insulation Aluminum Energy Storage Container Enclosure

Name: Multi Scenario High Insulation Aluminum Energy Storage Container Enclosure
Availability: InStock

1、The energy storage container is assembled from 6061 or 6082 T6 aluminum profiles and plates, with a yield strength of ≥260 MPa.

2、Robotic MIG welding or FSW provides high resistance to static pressure and wind-induced vibration, ensuring structural integrity in harsh conditions. The coating delivers excellent sealing and insulation to prevent external short-circuit risks, with optional waterproof sealing gaskets and dust screens for desert, coastal, or industrial environments.

3、Pre-embedded nuts and rivet nuts are integrated into this aluminum storage enclosure, enabling quick fixing of cell modules and BMS controllers.

Brand :
NewEnergyVehicleParts
Name :
Multi Scenario High Insulation Aluminum Energy Storage Container Enclosure
Material Grade :
6082/6061
Temper :
T6
Mechanical Properties :
tensile strengthRm≥290MPa yeild strength Rp0.2≥240MPa elongation延伸率：≥10%
manufacturing process :
Extrusion+CNC+CMT+Powder Coating

Inquiry Now

Multi Scenario High Insulation Aluminum Energy Storage Container Enclosure

The energy storage container is assembled from 6061 or 6082 T6 aluminum profiles and plates, with a yield strength of ≥260 MPa.

Robotic MIG welding or FSW provides high resistance to static pressure and wind-induced vibration, ensuring structural integrity in harsh conditions. The coating delivers excellent sealing and insulation to prevent external short-circuit risks, with optional waterproof sealing gaskets and dust screens for desert, coastal, or industrial environments.

Pre-embedded nuts and rivet nuts are integrated into this aluminum storage enclosure, enabling quick fixing of cell modules and BMS controllers.

Multi Scenario High Insulation Aluminum Energy Storage Container Enclosure

Category	Technical Parameters	Standard
Product Name	Multi Scenario High Insulation Aluminum Energy Storage Container Enclosure	sill beam/sill beam assembly
Material Grade	6082 Aluminum Alloy	High-Strength Grade
Temper	T6	Heat Treated
Tensile Strength	≥ 290 Mpa	Structural Stability
Yield Strength	≥ 240 Mpa	Load-bearing Capacity
Elongation	≥ 10%	Ductility & Toughness
Compatible Module	Customized Dimensions	Large-Format Modules
Manufacturing process	Extrusion+CNC+CMT+Powder Coating

Quality Control

Hardness Testing

HBW hardness testing (≥90) verifies yield strength ≥260 MPa for all extruded profiles and plates.

Sealing Performance Test

with dust and water spray ensures excellent sealing for outdoor and harsh environments.

Multi-Scenario Applicability Test

Combined environmental test (salt spray + temperature cycling + vibration) simulates desert, coastal, and industrial pollution conditions. Test data is provided.

Direct Factory Benefits

Capacity

Annual Production Capacity: 70,000 Tons

Customization

Support for Various Length and Cross-section Designs Based on Client Drawings

Packaging

Export-standard Protective Packaging to Prevent Deformation During Sea Freight

Frequently Asked Questions

Q1: s the quality of your products stable? Could there be dimensional variations between batches after mass production?

A: Very stable. Every batch is controlled under ISO/TS 16949, with 100% gauging inspection for critical holes and profiles. We have supplied over millions of sets with a customer complaint rate below 5 %.

Q2: How do you guarantee a 25-year lifespan in corrosive or coastal environments?

A: Normal lead time is 25~30 days. We reserve 20% flexible capacity for rush orders, with fastest delivery in 15 days upon prior agreement(Shipping time not including).

Q3: Do you have enough capacity? If we need 5,000 sets per month for six consecutive months, can you guarantee no supply interruption?

A:Our current monthly capacity is 50,000 sets. 5,000 sets/month is well within our capability, and we can sign an annual supply agreement to secure capacity.
